MakeBlock Ultimate 2.0 – 10-in-1 Robot Kit. MAK033-P

In stock

SKU: 1721


Processing time: 3-5 Business days


Currency:


$489.99
Ultimate 2.0 is a flagship robot kit based on Makeblock platform with rich features and strong compatibility.
Toggle Block Social

Description

Ultimate 2.0 is a flagship robot kit based on Makeblock platform with rich features and strong compatibility. Whether you are an enthusiast of Raspberry Pi or Arduino, a mechanical or electronics engineer, a teacher, or a student, it helps you learn the knowledge of mechanical structures, electronic modules and programming skill with ease.
Robotic Arm Tank
This Robot Arm Tank consists of a highly-adaptable track chassis and a flexible robotic arm. This robot is designed to help you grip, lift, and deliver objects in various terrains.
Robotic Bartender
Robotic Bartender is made up of a mobile chassis, a variable angle support structure and a self-adaptive bracket. It can independently pour wine into a glass (or do other similar action) and deliver the glass to you.
Camera Dolly
Camera Dolly consists of a mobile chassis and a 360-degree swivel base. Add a smart phone or a camera onto this robot and start filming from a low angle. You can also preset a path for the robot to follow in order to capture the moments of your life (motion noise may affect the sound recording).
3D Capture
3D Capture is a simple yet powerful 360-degree rotating platform, consisting of a cell phone holder and a rotating structure. Add a cell phone to realize 360-degree panoramic filming or let the robot film while moving around small objects. When connected with an app, it can simulate 3D scanning beautifully.
Self-Balancing Robot
This self-balancing robot is another building form of Ultimate 2.0 Robot Kit. It is driven by two encoder motors at its two wheels. It can move forward and backward while keeping balance.
Powerful Mainboard – MegaPi
MegaPi is small but powerful mainboard based on Arduino MEGA 2560. It has six function areas, which can be connected with modules to realize wireless communication or drive various motors. MegaPi is capable of driving 10 servos or 8 DC motors simultaneously. It can be used to build various robots, such as 3D printer and other robotic projects.
Graphical Programming from PC
Ultimate 2.0 is fully compatible with mBlock which is a graphical programming environment based on Scratch 2.0 Open Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks.

Featured

  • Ten building forms will meet all your need for different application scenes;
  • Great for learning robotics, electronics, graphical programming, Arduino programming and Python programming;
  • Anodized 6061 aluminum mechanical parts with threaded-slot design brings an easy way of building the robot;
  • Three powerful encoder motors enable you to feel every step of the robot;
  • Wirelessly control your robot with smart devices through Bluetooth connection
  • Technical Specifications

    Mechanical Parts:
  • Aluminum Extrusion Parts
  • Plastic Timing Pulleys 90T
  • Plastic Gears
  • Tracks and Wheels
  • Cables
  • Others Hardware and Accessories
    Electronic Modules:
  • 1 x MegaPi
  • 1 x MegaPi Shield for RJ25
  • 1 x Bluetooth Module
  • 4 x Motor Driver
  • 3 x Encoder Motor
  • 1 x Ultrasonic Sensor
  • 1 x Line Follower Sensor
  • 1 x 3-Axis Accelerometer and Gyro Sensor
  • 1 x RJ25 Adapter
  • 1 x Shutter
  • 1 x Makeblock Gripper
    Building Forms:
  • Ten Building forms(With paper assembling instruction for three main forms)
    Programming:
  • Graphical Programming
  • Arduino Programming
  • Python Programming
  • Node JS Programming

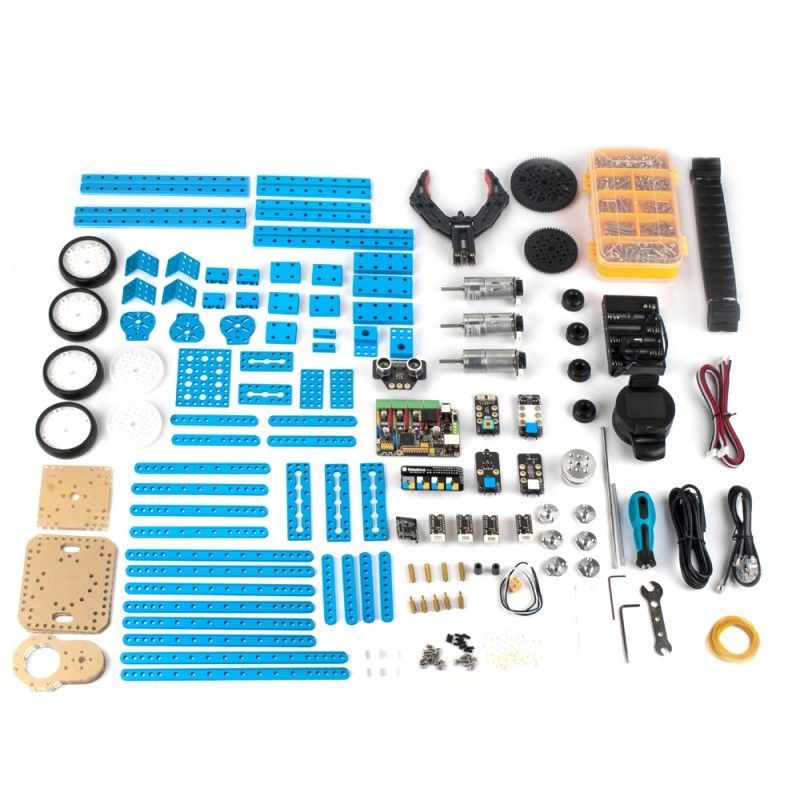

  • Contents

    Ultimate 2.0 – 10-in-1 Robot Kit
  • 4 × Beam0824-016
  • 5 × Beam0824-032
  • 3 × Beam0824-064
  • 2 × Beam0824-128
  • 1 × Slide Beam0824-176
  • 2 × Slide Beam0824-192
  • 2 × Beam0808-024
  • 2 × Plate0324-056
  • 3 × Plate0324-088
  • 4 × Beam0412-076
  • 4 × Beam0412-092
  • 4 × Beam0412-140
  • 6 × Beam0412-188
  • 2 × Beam0412-220
  • 2 × Bracket P3
  • 3 × 25mm DC Motor Bracket
  • 4 × Bracket 3×3
  • 2 × Plate 3×6
  • 1 × Plate 7×9-B
  • 6 × Shaft Connector 4mm
  • 4 × Stiffener1616-08-M4
  • 1 × Plane Bearing Turntable D34×24mm
  • 1 × Quick Release Plate r
  • 2 × 25mm Motor Bracket-72T
  • 2 × MegaPi Acrylic Bracket
  • 4 × Rubber Blanket
  • 4 × Tire 90T B
  • 6 × Plastic Timing Pulley 90T
  • 3 × Plastic Gear 8T
  • 2 × Plastic Gear 56T
  • 2 × Plastic Gear 72T
  • 1 × 360°Mobile Phone Bracket
  • 2 × Track 80×139mm
  • 1 × Battery Holder 6AA
  • 12 × Flange Copper Sleeve 4×8×4mm
  • 12 × Shaft Collar 4mm
  • 6 × Threaded Shaft 4×39mm
  • 2 × 4mm D shaft 50mm
  • 2 × Shaft D4×88mm
  • 1 × 4mm D shaft 160mm
  • 4 × Brass Stud M4×16
  • 4 × Plastic Ring 4×7×2
  • 8 × Plastic Ring 4×7×3
  • 2 × Plastic Ring 4×7×10
  • 20 × Plastic Rivet 4060
  • 20 × Plastic Rivet 4100
  • 20 × Plastic Rivet 4120
  • 12 × Headless Set Screw M3×5
  • 8 × Headless Set Screw M3×8
  • 6 × Countersunk Screw M3×8
  • 4 × Countersunk Screw M3×10
  • 50 × Screw M4×8
  • 46 × Screw M4×14
  • 10 × Screw M4×16
  • 4 × Screw M4×22
  • 4 × Screw M4×30
  • 47 × Nut M4
  • 10 × Nylon Lock Nut M4
  • 1 × 25mm DC Encoder Motor 9V/86RPM
  • 2 × 25mm DC Encoder Motor 9V/185RPM
  • 1 × Makeblock Robot Gripper
  • 3 × 25mm DC Encoder Motor Cable
  • 1 × MegaPi
  • 4 × MegaPi Encoder/DC Motor Driver
  • 1× MegaPi Shield for RJ25
  • 1 × Bluetooth Module
  • 1 × Me Ultrasonic Sensor
  • 1 × Me Line Follower
  • 1 × Me Shutter
  • 1 × Me 3-Axis Accelerometer and Gyro Sensor
  • 1 × Me Adapter
  • 1 × USB Cable B-1.3m
  • 2 × 6P6C RJ25 Cable-20cm
  • 1 × 6P6C RJ25 Cable-35cm
  • 10 × Rubber Bank
  • 10 × Nylon Cable Tie 1.9×100
  • 1 × Cross&2.5mm HEX Screwdriver
  • 1 × Small Four-way Socket Wrench
  • 1 × Wrench 5mm&7mm
  • 1 × HEX Key 1.5mm
