IPEVO TOTEM 120 Multimodal Collaboration Camera
IPEVO TOTEM 120 is a conference cam, a demo cam, and a document camera in one, with a design optimized for conferencing at the eye level, online product demonstrations, and sharing of documents and other visual materials.
Conferencing at Eye Level

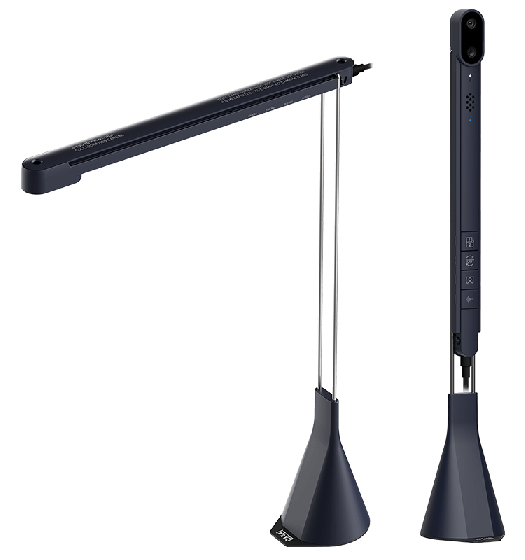

The height of the camera can be easily adjusted by simply pulling it upwards, to your eye level.
Document Mode
For document sharing, the camera can be aimed downward at a 90° angle.
Sharing Mode
It can also be aimed downward at a 45° angle, for product demonstrations, tutorials, and displaying whatever you need during your online collaboration.
On-board AI Auto Framing
When the AI Stage is activated, it automatically makes sure that everyone in front of the camera stays in the frame. This makes the communication more natural and immersive for the online participants.
AI-enhanced Voice Technology
TOTEM 120 is equipped with IntelliGo’s AI-enhanced Voice technology. This noise filter utilizes artificial intelligence, which was trained with over 500 million distinct data and is highly effective in maintaining the natural sound of the human voice while removing noise with high accuracy.
Dual-lens: 120° Ultra-wide Lens and 80° Autofocus Lensfor your Hybrid Conferencing needs
Switch effortlessly between the 120° and the 80° lenses to perfectly match your FOV need. The 120° ultra-wide lens is ideal for huddle room conferencing or presentations. The Autofocus built in the 80° lens provides a detailed experience for document sharing and individual video calls. The built-in Sony CMOS sensor delivers 4K quality in any kind of environment lighting.
Efficient Video Conferencingwith Flexibility
IPEVO TOTEM 120 is designed for huddle rooms and meeting rooms not equipping with conferencing equipment. It delivers unmatched flexibility and collaboration freedom to business conferencing.
Capture Presentations
TOTEM's ultra-wide lens and versatile adaptable body allow capturing whole whiteboard surface including the presenter and displaying the full image for the online participants.
Video Conferencing Anywhere
TOTEM 120 is portable and its AI-enhanced voice technology gives freedom to turn any place into professional conferencing space.
IPEVO EyeStage™ SoftwarePerfect match for TOTEM 120
IPEVO EyeStage™ delivers complete control of how your hybrid conference or online presentation is displayed, along with automatic camera control and video modes powered by AI.
Use face tracking for camera control, have the AI follow your movement, or put the spotlight on the meeting participants. EyeStage's AI can help even when sharing printed materials via your camera.
*Pressing the AI Stage button switches EyeStage™ to the Portrait AI Frame.
OUTSTANDING DUAL-LENS CAMERA: It features two 8MP lenses with a SONY CMOS sensor to deliver 4K quality. The 120° ultra-wide lens is ideal for huddle room conferencing. The Auto Focus in the 80° lens provides a detailed experience for document sharing and individual video calls.
MULTIMODAL 3-IN-1: (1) Conferencing Mode allows for eye-level communication. (2) Sharing Mode lets you do demonstrations and showcase a wide workspace. (3) Document Camera Mode is great for sharing documents and live annotations.
AI ENHANCEMENTS: The on-board “AI Stage” automatically frames the person, or multiple participants, at the center of the image. The microphone with “AI Voice” reduces disturbing background noise and enhances the human voice, so the user can collaborate remotely from anywhere.
EASY AND CONVENIENT: Plug-and-Play integration via USB-C with Windows, Mac, Chromebook, and all popular video conferencing platforms like Zoom, Google Meet, Skype, Microsoft Teams, etc. It is light, slender and portable, it can be quickly deployed at any table.
Camera:
Megapixel:
120° lens: 8 MP
80° lens: 8 MP
Resolution:
3840 x 2160 (16:9)
3264 x 2448 (4:3)
Frame Rate:
3840 x 2160 @ 30fps
3264 x 2448 @ 15fps
Focus:
120° lens: Fixed focus
80° lens: Autofocus
Focus Range:
120° lens: 19.7″ ~ 297.2″
80° lens: 3.93″ ~ ∞
Max. Capturing Area (when facing downward):
120° lens: Tabloid (11.0” x 17.0”)*
80° lens: US letter (8.5” x 11.0”)
*Using the 80° lens equipped with autofocus is recommended for viewing text documents.
Compatibility and Output Connectivity: Compatibility (Plug & Play):
Mac, Windows PC, or Chromebooks with a USB Type-C port
Built-in Features

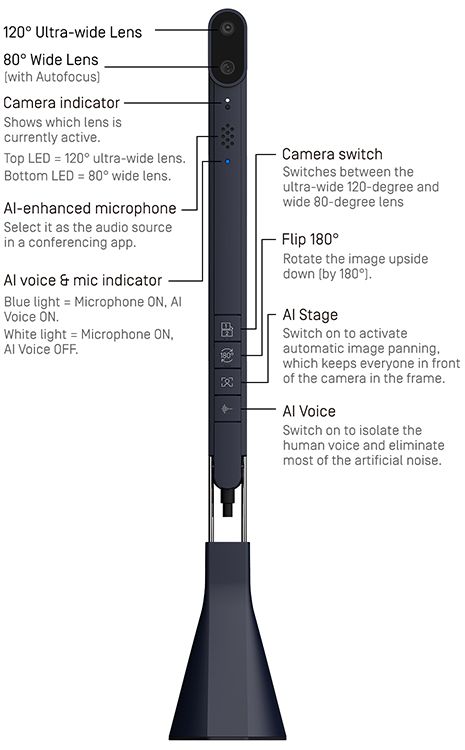

Physical Control Buttons:
Camera switch, image rotation, AI Stage, AI Voice
Microphone:
Omnidirectional, 16-ft range, EMI filter, Sensitivity: −26dB FS, SNR: 64adB(A)
Weight & Size & Color
Weight: lbs (450g)
Size (L x W x H):
Basic size: 2.4″ x 2.1″ x 13.2″ (60 x 54 x 335 mm)
Height when fully extended: 20.3″ (515 mm)
Color: Dark blue
System Requirements:
Mac:
Minimum: Intel® Core™ i5 CPU 1.8 GHz or higher, OS X 10.10 or higher, 2 GB RAM, 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080) Recommended: Intel® Core™ i5 CPU 2.5 GHz or higher, OS X 10.14 or higher, 8GB RAM, Solid-state drive, 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080, and video recording of 1920 x 1080)
Windows:
Minimum: Microsoft Windows 7 Service Pack 1 or higher, Intel® Core™ i3 CPU 3.20 GHz or higher, 4 GB RAM, 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080)
Recommended: Microsoft Windows 10, Intel® Core™ i5 CPU 3.40 GHz or higher, 8GB RAM, 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080, and video recording of 1920 x 1080)
Chromebook:
Chromebooks with a USB Type-C port
